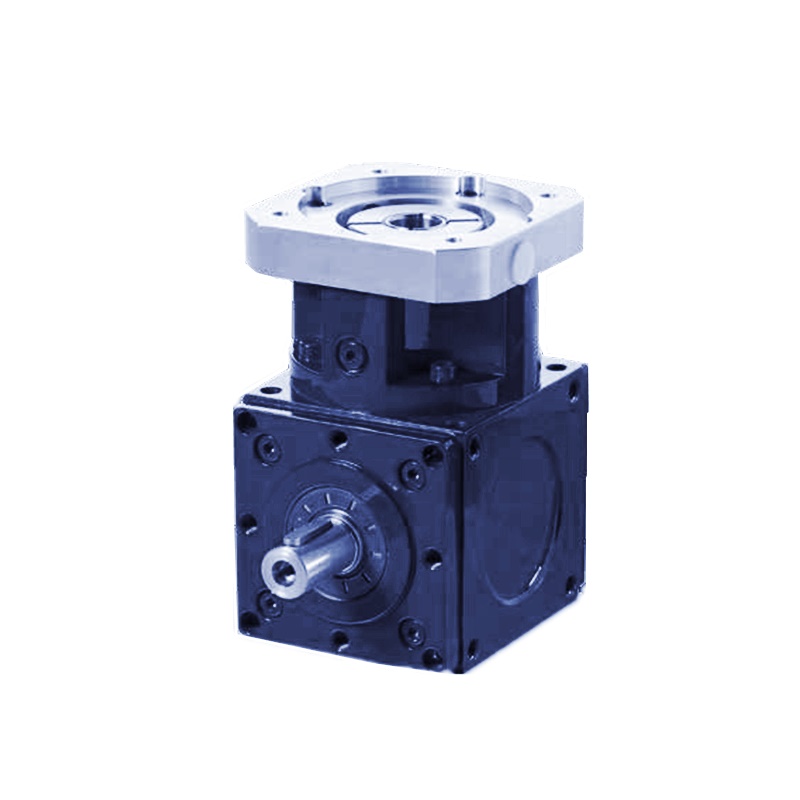

VOGEL螺旋锥齿轮箱ML50-ML200
Technical specifications on this page and in the tables on the following two pages are intended only for rough preselection.
Gear teeth: M L 50 Klingenberg spiral bevel toothing
M L 100 – ML 200 Klingelnberg spiral bevel toothing ground
Direction
of rotation: T he opposite direction when facing C and A
Efficiency: S ize 50 η ~0,88 – 0,92
S ize 100 η ~0,90 – 0,94
S ize 200 η ~0,90 – 0,94
Life time: 20000 h
Permissible gearbox temperature
at housing: -10 °C to +90 °C
Lubrication: Oil lubrication
Mounting
position: Any, please specify when ordering
Surface protection: Primer coat RAL 9005 black
Protection rating: I P 54
