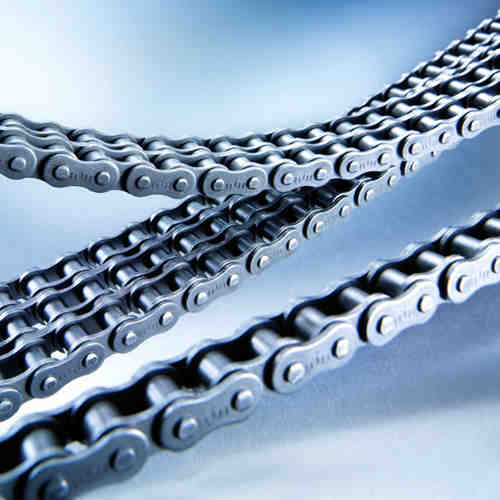

ELITE-roller chains are famous for their high wear resistance and a significantly higher fatigue strength than the relevant standard requires. All ELITE transmission roller chains are highly prestretched
and treated with our high-tech initial lubricant eliDUR, a special additive chain oil, before delivery to the customer.
H- and HV-series:
ANSI chains are available for applications with extremely high loads, as well as specially strengthened versions of chains manufactured to the European standard. Roller chains in our H and HV series have
the same dimensions as the corresponding ANSI chains, but with plates as thick as those of the next larger size of chain.
• As a rule, H-series chains are made with the same pin materials as standard roller chains. However, they have a significant advantage over standard chains: despite their increased wear resistance and greater tensile strength, this does not have any significant effect on their breaking strength.
• HV-series chains are fitted with special case-hardened steel alloy pins, giving the chains not only increased tensile strength, but also extremely high breaking strength values.
BS-Simplex: 04B-1 05B-1 06B-1 08B-1 10B-1 12B-1 16B-1 20B-1 24B-1 28B-1 32B-1 40B-1 48B-1 56B-1 64B-1 72B-1
BS-Duplex: 04B-2 05B-2 06B-2 08B-2 10B-2 12B-2 16B-2 20B-2 24B-2 28B-2 32B-2 40B-2 48B-2 56B-2 64B-2 72B-2
BS-Triplex: 05B-3 06B-3 08B-3 10B-3 12B-3 16B-3 20B-3 24B-3 28B-3 32B-3 40B-3 48B-3 56B-3 64B-3 72B-3
ANSI-Simplex: 25 35 40 50 60 80 100 120 140 160 180 200 240
ANSI-Duplex: 25-2 35-2 40-2 50-2 60-2 80-2 100-2 120-2 140-2 160-2 180-2 200-2 240-2
ANSI-Triplex: 25-3 35-3 40-3 50-3 60-3 80-3 100-3 120-3 140-3 160-3 180-3 200-3 240-3
Heavy series H
ANSI-H-Simplex: 40H 50H 60H 80H 100H 120H 140H 160H 180H 200H 240H
ANSI-H-Duplex: 60-2H 80-2H 100-2H 120-2H
Heavy series HV
ANSI-HV-Simplex: 50HV 60HV 80HV 100HV 120HV 140HV
Straight side plates
| BS-Simplex | BS-Duplex | BS-Triplex | ANSI-Simplex | ANSI-Duplex | ANSI-Triplex |
| GL08B-1 | GL08B-2 | GL08B-3 | GL35-1 | ||
| GL10B-1 | GL10B-2 | GL10B-3 | GL40-1 | GL40-2 | GL40-3 |
| GL12B-1 | GL12B-2 | GL12B-3 | GL50-1 | GL50-2 | GL50-3 |
| GL16B-1 | GL16B-2 | GL16B-3 | GL60-1 | GL60-2 | GL60-3 |
| GL20B-1 | GL20B-2 | GL20B-3 | GL80-1 | GL80-2 | GL80-3 |
| GL24B-1 | GL100-1 | GL100-2 | |||
| GL120-1 |
| BS-Simplex | ANSI-Simplex |
| 08BSB | 40SB |
| 10BSB | 50SB |
| 12BSB | 60SB |
| 80SB |
081 083 084 085 415 415H 423 420 428H 520 12BH 12BV 229 305 16BH 24BH
• All roller chains fulfill at least the minimum requirements of ISO 606 (DIN 8187/8188)• Treatment with eliDUR initial lubricant ensures extremely high wear resistance
• As a rule, all our roller chains are pre-stretched with >40% of standard breaking strength
• ELITE chain plates 1 with optimum geometry are precisionformed and heat-treated. The tapered and shot- blasted chain plates also have particularly high contact ratios.
• ELITE pins 2 are smooth and have an extra hard surface for increased wear resistance
• ELITE bushes 3 are absolutely cylindrical and either seamless or wound, depending on the intended application.
• ELITE uses seamless rollers 4 made of cold-extrusion steel with a specially treated surface.
• Heat-treated and case hardened steel alloys are used for all chain components
• Heat treatment of all chain parts is optimized for size and application
• Operational temperature range: -5 °C to +120 °C
