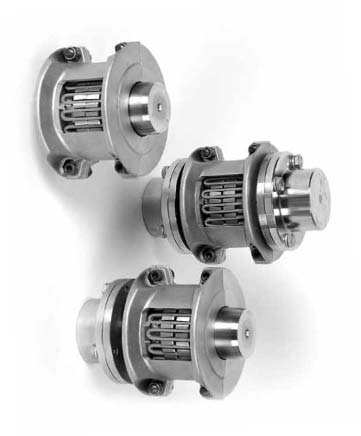

Mekkaflex®蛇形弹簧联轴器凝聚了齿形联轴器之大扭矩和弹性联轴器之柔性，是中重型联轴器更简单更理想的联轴器。
T10基本型短轴孔蛇形弹簧联轴器
T05冷装系列基本型短轴孔蛇形弹簧联轴器
T20系列罩壳轴向安装联轴器
T31系列法兰联接联轴器
T35系列单法兰联接联轴器
|
型号 |
公称 转矩 Tn N.m |
许用转速 「n」rpm |
最大轴孔 d mm |
轴孔长度 L mm |
总长L0 mm |
L2 mm |
D mm |
D1 mm |
间隙 C mm |
质量 无孔 kg |
转动 惯量 I Kg.m2 |
充油量 kg |
|
1020T |
52 |
4500 |
28 |
47.6 |
98.2 |
66.7 |
97.0 |
-- |
3 |
1.91 |
0.0014 |
0.027 |
|
1030T |
149 |
4500 |
35 |
47.6 |
98.2 |
68.3 |
105.7 |
-- |
3 |
2.59 |
0.0022 |
0.041 |
|
1040T |
249 |
4500 |
42 |
50.8 |
104.6 |
69.9 |
114.3 |
-- |
3 |
3.36 |
0.0033 |
0.054 |
|
1050T |
435 |
4500 |
50 |
60.3 |
123.6 |
80.9 |
135.1 |
-- |
3 |
5.44 |
0.0073 |
0.068 |
|
1060T |
684 |
4350 |
56 |
63.5 |
130.0 |
93.5 |
157.8 |
-- |
3 |
7.26 |
0.0119 |
0.086 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1070T |
994 |
4125 |
65 |
76.2 |
155.4 |
96.8 |
158.8 |
-- |
3 |
10.4 |
0.0185 |
0.113 |
|
1080T |
2050 |
3600 |
80 |
88.9 |
180.8 |
115.6 |
190.5 |
-- |
3 |
17.7 |
0.0451 |
0.172 |
|
1090T |
3730 |
3600 |
95 |
98.4 |
199.8 |
122.2 |
211.1 |
-- |
3 |
25.4 |
0.0787 |
0.254 |
|
1100T |
6280 |
2440 |
110 |
120.6 |
246.2 |
155.4 |
251.0 |
-- |
5 |
42.2 |
0.1780 |
0.426 |
|
1110T |
9320 |
2250 |
120 |
127.0 |
259.0 |
161.5 |
269.7 |
-- |
5 |
54.4 |
0.2700 |
0.508 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1120T |
13700 |
2025 |
140 |
149.2 |
304.4 |
191.5 |
307.8 |
-- |
6 |
81.2 |
0.5140 |
0.735 |
|
1130T |
19900 |
1800 |
170 |
161.9 |
329.8 |
195.1 |
345.9 |
-- |
6 |
121 |
0.9590 |
0.908 |
|
1140T |
28600 |
1650 |
200 |
184.2 |
374.4 |
201.2 |
384.0 |
-- |
6 |
178 |
1.8500 |
1.135 |
|
1150T |
39800 |
1500 |
215 |
182.9 |
371.8 |
271.5 |
453.1 |
391.2 |
6 |
227 |
3.4900 |
1.952 |
|
1160T |
55900 |
1350 |
240 |
198.1 |
402.2 |
278.4 |
501.9 |
436.9 |
6 |
309 |
5.8200 |
2.815 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1170T |
74600 |
1225 |
280 |
215.9 |
437.8 |
307.3 |
566.9 |
487.2 |
6 |
448 |
10.400 |
3.496 |
|
1180T |
103000 |
1100 |
300 |
238.8 |
483.6 |
321.1 |
629.9 |
554.7 |
6 |
619 |
18.300 |
3.768 |
|
1190T |
137000 |
1050 |
320 |
259.1 |
524.2 |
325.1 |
675.6 |
607.8 |
6 |
776 |
26.100 |
4.400 |
|
1200T |
186000 |
900 |
360 |
279.4 |
564.8 |
355.6 |
756.9 |
660.4 |
6 |
1057 |
43.500 |
5.630 |
|
1210T |
249000 |
820 |
380 |
301.8 |
622.6 |
431.8 |
844.6 |
750.8 |
13 |
1424 |
75.500 |
10.53 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1220T |
336000 |
730 |
420 |
325.1 |
663.2 |
490.2 |
920.8 |
822.2 |
13 |
1785 |
113.00 |
16.07 |
|
1230T |
435000 |
680 |
450 |
3454 |
703.8 |
546.1 |
1003.3 |
904.7 |
13 |
2267 |
175.00 |
24.06 |
|
1240T |
559000 |
630 |
480 |
368.3 |
749.6 |
647.7 |
1087.1 |
-- |
13 |
2950 |
339.00 |
33.82 |
|
1250T |
746000 |
580 |
510 |
401.3 |
815.6 |
698.5 |
1181.1 |
-- |
13 |
3833 |
524.00 |
50.17 |
|
1260T |
932000 |
540 |
550 |
431.8 |
876.6 |
762.0 |
1260.9 |
-- |
13 |
4682 |
711.00 |
67.24 |
